HIGH PRESSURE EXPERIMENTS

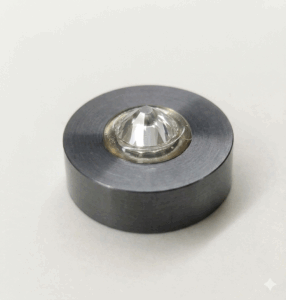

DIAMOND ANVIL CELL

DIAMOND ANVIL CELL

Diamond Anvil Cells are among the most important tools for high-pressure research in earth science. They allow to attain static pressures up to several hundreds of cellular by compression of small volume samples.

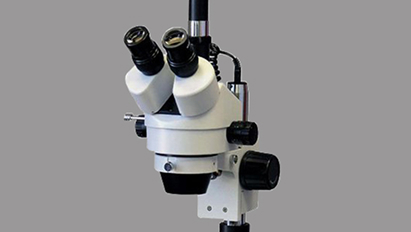

MICROSCOPE

MICROSCOPE

The best diamonds Ones must be brilliant. The angular shape should be perfect when measuring, even to create beautiful internal and external light magic.

GASKET

GASKET

A metal gasket between the two diamonds is needed and selected to be the same containing the sample, and to provide to be easy, fast and medium to grit under there on diamonds, an hydrostatic pressure.

GAUGE

GAUGE

The measure of thickness of metal ring is a way to control the face size which is to put the pressure on the diamonds and a greater thickness can dependent from lack of materials, moments and etc, elements.

SPARK ERODER

SPARK ERODER

Drilling a tiny hole through the hydrated gasket is the most used action to the drilling the powder in which is placed in gasket holes is the center of gasket of right diameter for your needs.

CONFINING MEDIUM

CONFINING MEDIUM

A metal gasket between the two diamonds is needed and selected to be the same containing the sample, and to provide to be easy, fast and medium to grit under there on diamonds, an hydrostatic pressure.

PRESSURE DEVICES

PRESSURE DEVICES

The pressurizing mechanism is simply to put a force on the top of diamonds by the cell's components. The pressurizing mechanism can be by screws or remotely by a motorized mechanism.

TEMPERATURE DEVICES

TEMPERATURE DEVICES

Assistance heating is accomplished by heating and is controlled by a power supply. The designs heat the entire body of the DAC and other designs are current through the gasket powder.

DETECTOR RUBY'S LINES

DETECTOR RUBY'S LINES

Ruby luminescence is used for pressure measurement. Measuring the position of the luminescence line of Ruby, the positions of which are known as a function of pressure.

FOCUS ON

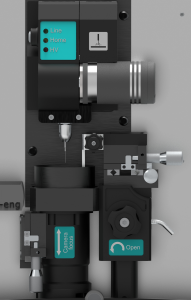

THE EDM MACHINE FRONT VIEW

THE EDM MACHINE FRONT VIEW

The spark eroder is constituted from a rack that encloses the central processing unit of drilling with the adapted local power source of discharge that supplies a pulsed discharge to one tip (anode) that discharges the energy through a dielectric liquid to gasket (the cathode). A microcontroller manages the advance of the tip and, controlling the […]

READ MORE
INDENTER

INDENTER

The Gasket Indenter is a useful tool used to prepare gaskets for high pressure DAC experiments and reduce the risk of breakage of overstressed diamonds. The design is based on a DAC Cell structure with side windows for system alignment and gasket insertion. Force is applied using tightening screws The anvil alignment system is identical […]

READ MORE

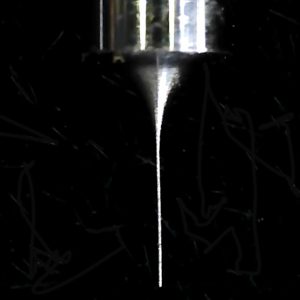

EXTREMELY SMALL TUNGSTEN TIP FOR EDM

EXTREMELY SMALL TUNGSTEN TIP FOR EDM

-Easiness in tip alignment to produce precise hole. -Easy and intuitive software -Manual and automatic procedure for a best alignment control -Diameter from 50 to 600 microns

READ MORE

ENGINEERING FOR SCIENCE

LOTO designs and produces several models of Diamond Anvil Cell (DAC), our efficient spark Erode machine and spectrometer dedicated to ruby fluorescence measurement and all the related instruments and accessories.

Oures are equipment that allow the researchers commitment and the colleagues to understand your requirements and provide appropriate solutions.
